Design, prototyping, and manufacturing of optical systems and components

#
intensity diagram in

Tarnsforming of intensity distribution.
Gaussian or Lambertian into Flat-Top.
Axisymmetric or anamorphoticshape.
Fixed of zoomable spot.

intensity diagram out
sonataos sample objective sonataos.de actual projects
sonataos.de actual

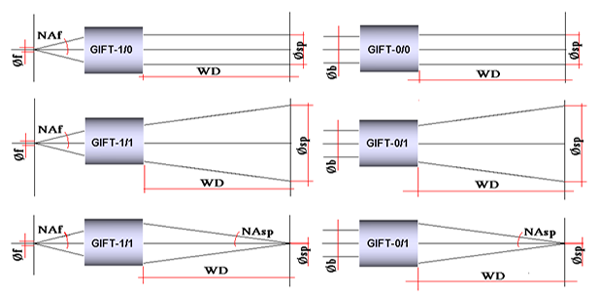

of - source Ø ob - beam Ø NAf - source numerical aperture
WD - working distance osp - Flat-Top Ø

sonataos.de actual
Source Ø, um Source NA Distance to GIFT, mm Source Intensity λ, um Distance to Flat-Top, mm Flat_Top dimens
50,0 0,22 10,0 Lambert 0,450 500,0 60x1mm2
200,0 0,12 10,0 Lambert 0,808 50,0 Ø20,0 mm
3,0 mm 0,0001 ----- Gaussian 0,633 50,0 Ø40,0 um
